Hilborn fuel injection system for a 430

Post by Chris Craft crazy » Sat 23. Jan 2010, 09:17

Hilborn made this system, and by all accounts a very rare system. Hilborn was in the business of making early fuel injection systems for a lot of engines... this one came up on ebay, so I saved the photos. This one needs to be rebuilt, has no pump and associated stuff, but is otherwise complete from my unfamiliar eyes

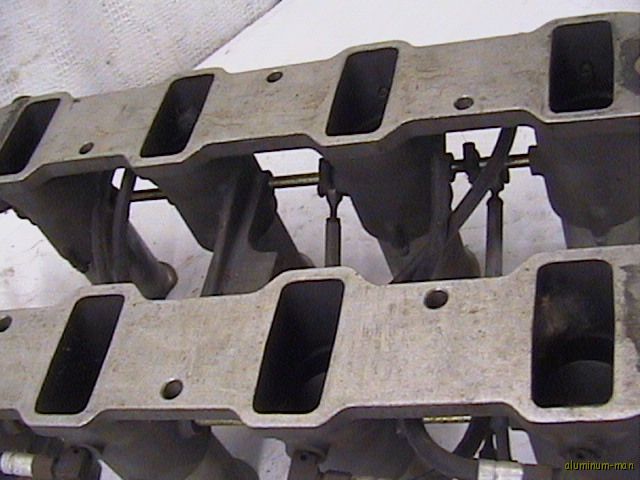

hilborn 1.jpg
Hilborn fuel injection system for a 430 RARE

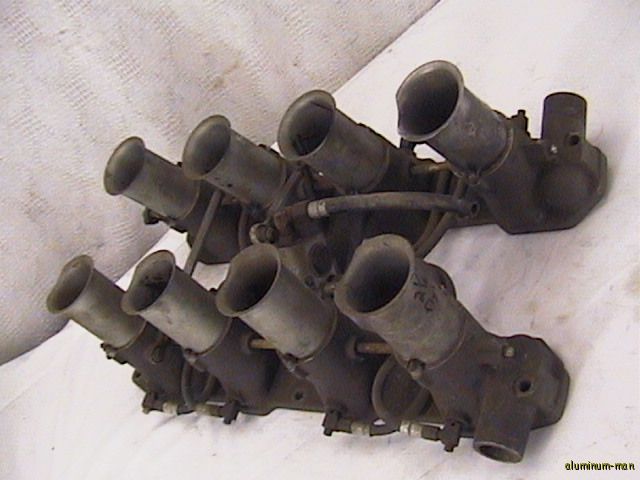

hilborn 2.jpg
Hilborn fuel injection for a 430 Picture 2
Attachments

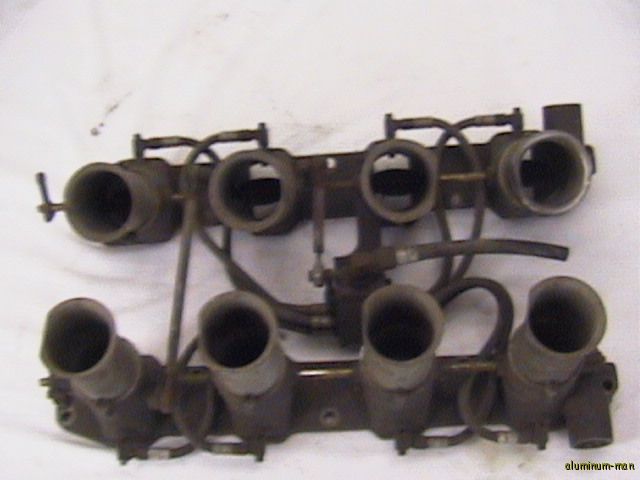

hilborn 4.jpg
Hilborn fuel injection for a 430 Picture 3
MEL Marine division... and if you thought MEL car parts were scarce....

User avatar
Theo
Administrator
Administrator
Posts: 1179
Joined: Sun 21. Dec 2008, 14:10
Gender: male
Location: Berlin / Potsdam in Germany
Contact:

Re: Hilborn fuel injection system for a 430

Post by Theo » Sun 24. Jan 2010, 03:30

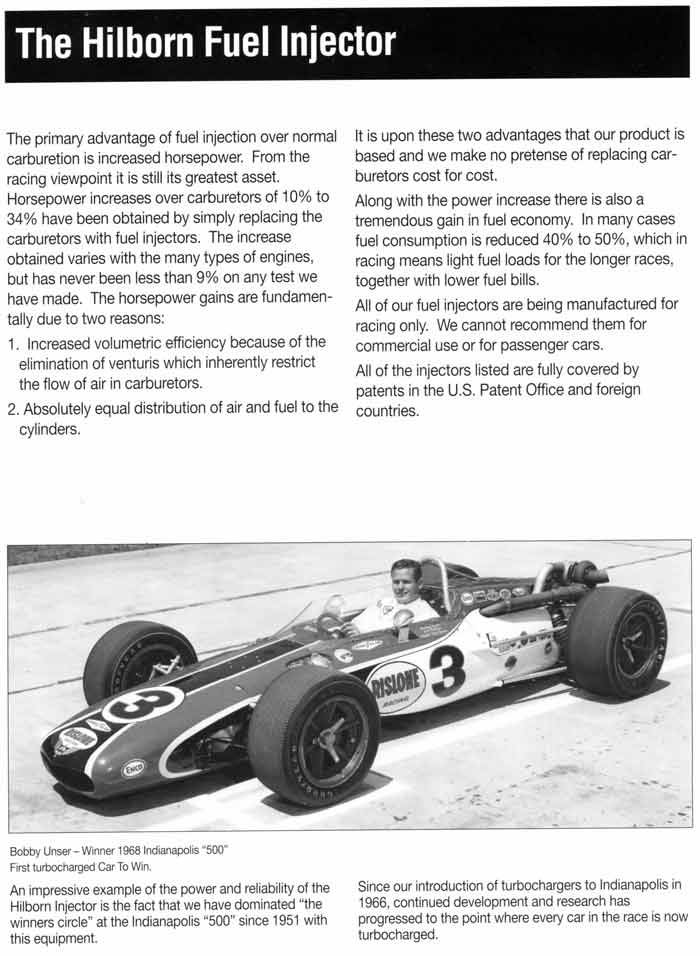

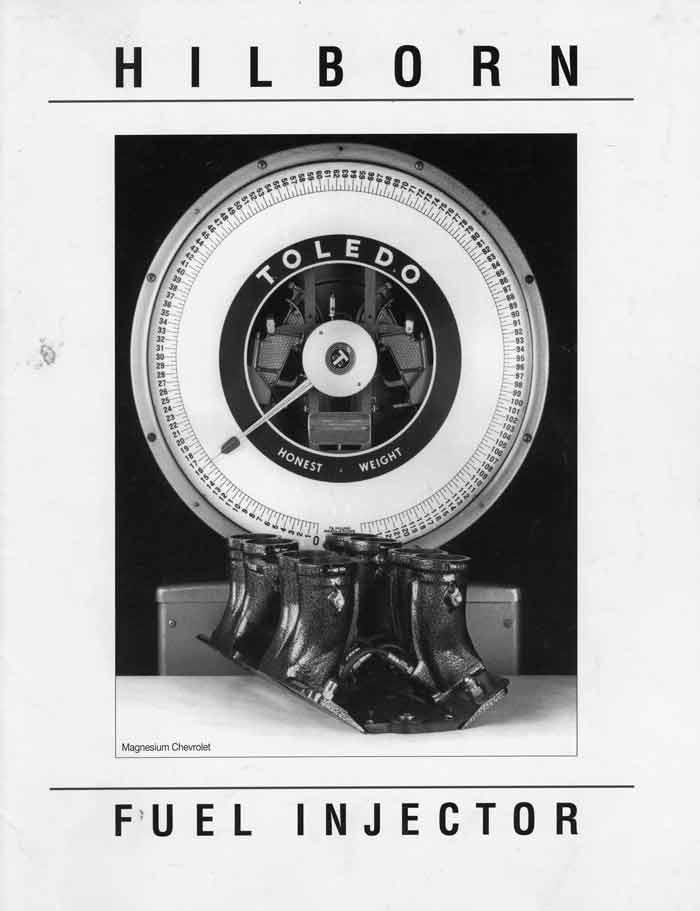

Fuel injection systems are a considerable solution in some instances. Some were made out of Magnesium which is lighter than aluminium but also inflamable I think, not sure.. I found an old 1995 Hilborn catalog in my shelf. See the Ford prizes at the bottom right side of the listing. It's not actual off course but might give an impression of what prize you're looking at for those snorkels.
Best regards
Theo
Admin

Treinarts
Airman First Class
Airman First Class
Posts: 69
Joined: Fri 23. Jan 2009, 07:56
Gender: male
Music instruments you're playing: none

Re: Hilborn fuel injection system for a 430

Post by Treinarts » Tue 26. Jan 2010, 08:14

I have the manifolds and injectors. Still gathering other parts. The pumps are still around. Not too tough to find. Brackets have to be fabricated. Hoses and linkage can be purchased from Hilborn.
I will probably put it in a boat. Maybe this summer. The hilborns really don't work well on street cars. I will get the engine running well with a carb set up first. TJR

User avatar
Theo
Administrator
Administrator
Posts: 1179
Joined: Sun 21. Dec 2008, 14:10
Gender: male
Location: Berlin / Potsdam in Germany
Contact:

Re: Hilborn fuel injection system for a 430

Post by Theo » Wed 27. Jan 2010, 16:13

Hope you won't forget to post us a few pics. I'm drooling forward to see them :)
Best regards
Theo
Admin

Treinarts
Airman First Class
Airman First Class
Posts: 69
Joined: Fri 23. Jan 2009, 07:56
Gender: male
Music instruments you're playing: none

Re: Hilborn fuel injection system for a 430

Post by Treinarts » Thu 28. Jan 2010, 16:53

Funny pun Theo. I wonder how many others got it. TJR

User avatar
Theo
Administrator
Administrator
Posts: 1179
Joined: Sun 21. Dec 2008, 14:10
Gender: male
Location: Berlin / Potsdam in Germany
Contact:

Re: Hilborn fuel injection system for a 430

Post by Theo » Fri 29. Jan 2010, 04:05

Oh my gaaawd!! Quite an angle. Even I wasn't aware. ;)
Best regards
Theo
Admin

raemore
Airman basic
Posts: 2
Joined: Wed 7. Jul 2010, 10:34
Gender: male
Music instruments you're playing: none

Re: Hilborn fuel injection system for a 430

Post by raemore » Wed 7. Jul 2010, 10:44

You will have noticed how easily the 430 lends itelf to custom intake fabrication...!!!
probably the easiest of any engine out there.
Look tthe intake runner config.
wide spaced no interference from vally cover valve cover etc.
VERY nice
