A photographic reminder to replace your timing set

Discussion of MEL engine related topics only.
reijerlincoln
Staff Sergeant
Staff Sergeant
Posts: 158
Joined: Sat 27. Dec 2008, 02:13
Gender: male
Music instruments you're playing: '81 Gibson Les Paul Custom through a Fender Blues Junior!
Location: The Netherlands

A photographic reminder to replace your timing set

Post by reijerlincoln » Fri 24. Jul 2009, 06:28

Here's what happened yesterday to Tom, my latest fellow slabside owner in Holland, when he was test driving his recently acquired '64:
:|

I had warned him about this but he nor I expected it to happen on the first outing.

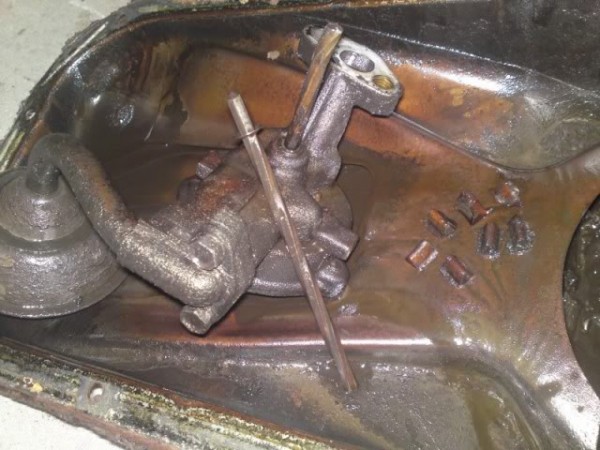

So.... to everyone concerned: MEL 430 & MEL 462 motors were originally equipped with a cam timing gear that has nylon teeth and aluminium centre. They used these for quiet engine operation. The concern was quality off assembly, not longevity once out of warranty. It should have been replaced decades ago. If yours hasn't... do it now. If you're uncertain whether it has... do it now. Age alone will have caused the nylon teeth to become brittle and subject to breaking off, ending up in the oil pan and clogging the oil pickup screen, thereby choking off the oil pump (a fatal blow to any engine). You can see the teeth lying next to the oil pump in the photo.

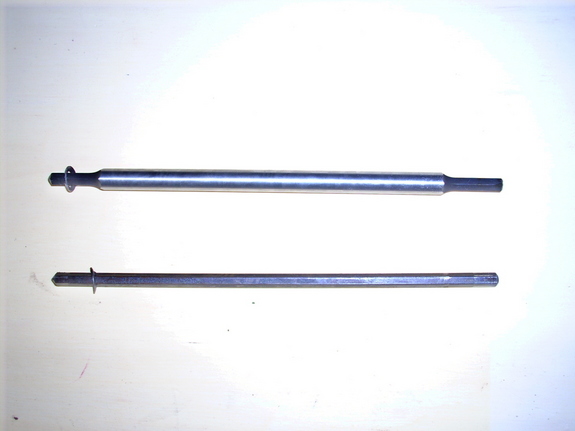

Also, replace your original oil pump drive shaft with this billet drive shaft from Precision Oil Pumps in Ca, (559)325-3553. The original is literally as thin as a pencil and really isn't up to the job. This replacement works for the MEL engines. It is an FE drive that is +.0375" Longer for Main Girdle Applications. This shaft is about .075 too long, but the MEL guys get them and grind that amount off the bottom (pump end) to make them fit. Just use a bench grinder. The shafts are $20.00 plus shipping.

User avatar
Shelby#18
Master Sergeant
Master Sergeant
Posts: 353
Joined: Fri 17. Apr 2009, 14:15
Gender: male
Music instruments you're playing: none

Re: A photographic reminder to replace your timing set

Post by Shelby#18 » Fri 24. Jul 2009, 09:58

Thanks for the post! But where would one find the first item?

reijerlincoln
Staff Sergeant
Staff Sergeant
Posts: 158
Joined: Sat 27. Dec 2008, 02:13
Gender: male
Music instruments you're playing: '81 Gibson Les Paul Custom through a Fender Blues Junior!
Location: The Netherlands

Re: A photographic reminder to replace your timing set

Post by reijerlincoln » Fri 24. Jul 2009, 10:29

Oh right. :roll: A timing set from Cloyes is often mentioned as the best option. You can order them online at several shops or at Lincoln Land, Baker's Auto. Egge has them too I believe.

User avatar
Shelby#18
Master Sergeant
Master Sergeant
Posts: 353
Joined: Fri 17. Apr 2009, 14:15
Gender: male
Music instruments you're playing: none

Re: A photographic reminder to replace your timing set

Post by Shelby#18 » Fri 24. Jul 2009, 11:43

Thank you. Thats really bad news for you friend. I've been lucky so far. I'm letting my engine builder know to replace these items for my current rebuild. Excellent timing by the way. ;)

reijerlincoln
Staff Sergeant
Staff Sergeant
Posts: 158
Joined: Sat 27. Dec 2008, 02:13
Gender: male
Music instruments you're playing: '81 Gibson Les Paul Custom through a Fender Blues Junior!
Location: The Netherlands

Re: A photographic reminder to replace your timing set

Post by reijerlincoln » Mon 27. Jul 2009, 03:58

TonyC made the following addendum to a similar thread on another forum. It thinks it's worth while placing it here.
There are two things that I must clarify. Nylon, along with dacron, rayon, polyester, etc., etc., were still relatively new substances, and nobody back then could have known that there would be a limited life span on the gears. It's possible that they may have considered an alternative had they known. Nylon is very light but very strong; that's why they chose it as the material to make quieter timing gears--not necessarily because it was cheap and they deliberately tried to make their engines die after a certain time.

The 430 and 462 MELs were the first engines to utilize nylon gears, but they were NOT the only ones. Every Ford engine afterward, to include (but not limited to) every beloved 460, along with some GM engines and maybe even a few Chrysler engines (though I don't have proof of Chrysler--who cares about them, anyway? :twisted: :D ) converted to nylon gears for the same reason that Lincoln did. That means that many other non-MEL engines will follow suit when they reach the general threshhold--some already have.

The '61 Continental was a pioneer in many small engineering standards for the industry; it's just that nobody cares to notice a perceived "grampsy" vehicle like Lincoln. It's only in retrospect that we have discovered the down side of nylon gears; even Baker didn't know about it until the early '90s.

reijerlincoln
Staff Sergeant
Staff Sergeant
Posts: 158
Joined: Sat 27. Dec 2008, 02:13
Gender: male
Music instruments you're playing: '81 Gibson Les Paul Custom through a Fender Blues Junior!
Location: The Netherlands

Re: A photographic reminder to replace your timing set

Post by reijerlincoln » Sun 2. Aug 2009, 05:29

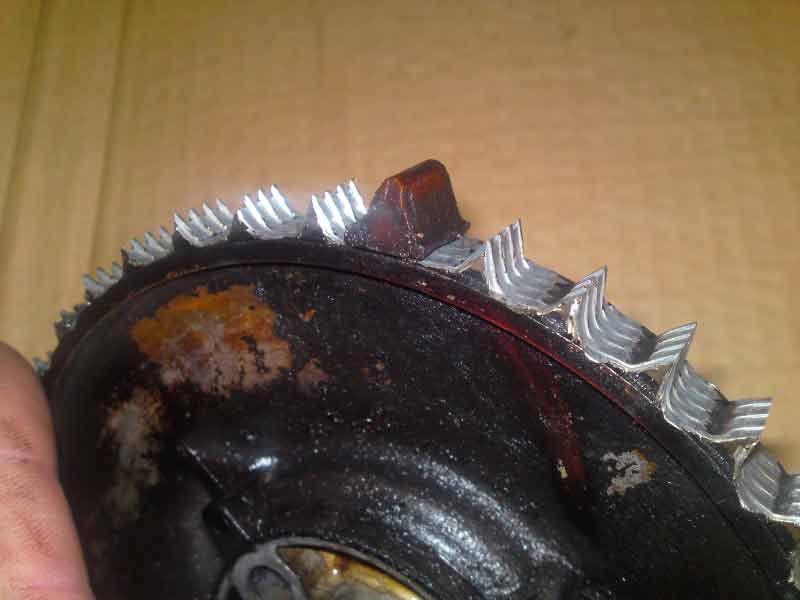

Tom is back to work on his motor. Here´s what he found; the cam timing gear had one tooth left:

:shock:

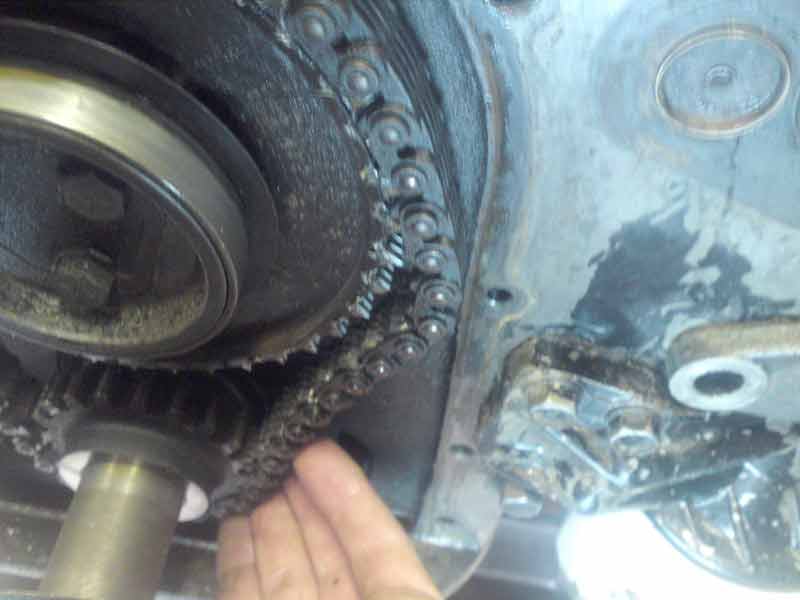

Lots of slack on the timing chain of course:
