DIY010A Super Marauder / Holley Throttle plate Rebuild

Post by 59lincolnrag » Thu 23. Sep 2010, 16:00

DIY010A Super Marauder Restoration,Holley Throttle plate Rebuild


Holley Carburetor Throttle plate Rebuild
This is a secondary carburetor assembly
Remove the throttle plate from the carburetor assembly. We want to completely break this down.
As you can see there are 4 retaining screws and some associated hardware that needs to be removed.
Flip the piece over and using a drill press or a hand drill carefully drill off the ends of the screws.
Do not drill through. You can see that they were originally staked over to prevent them from backing out.
Pull out the throttle shaft. You will see the three nylon bushings.
Notice the brass shaft is relieved to accept the bushings.The new shaft has no relief and will be used with bronze bushings.

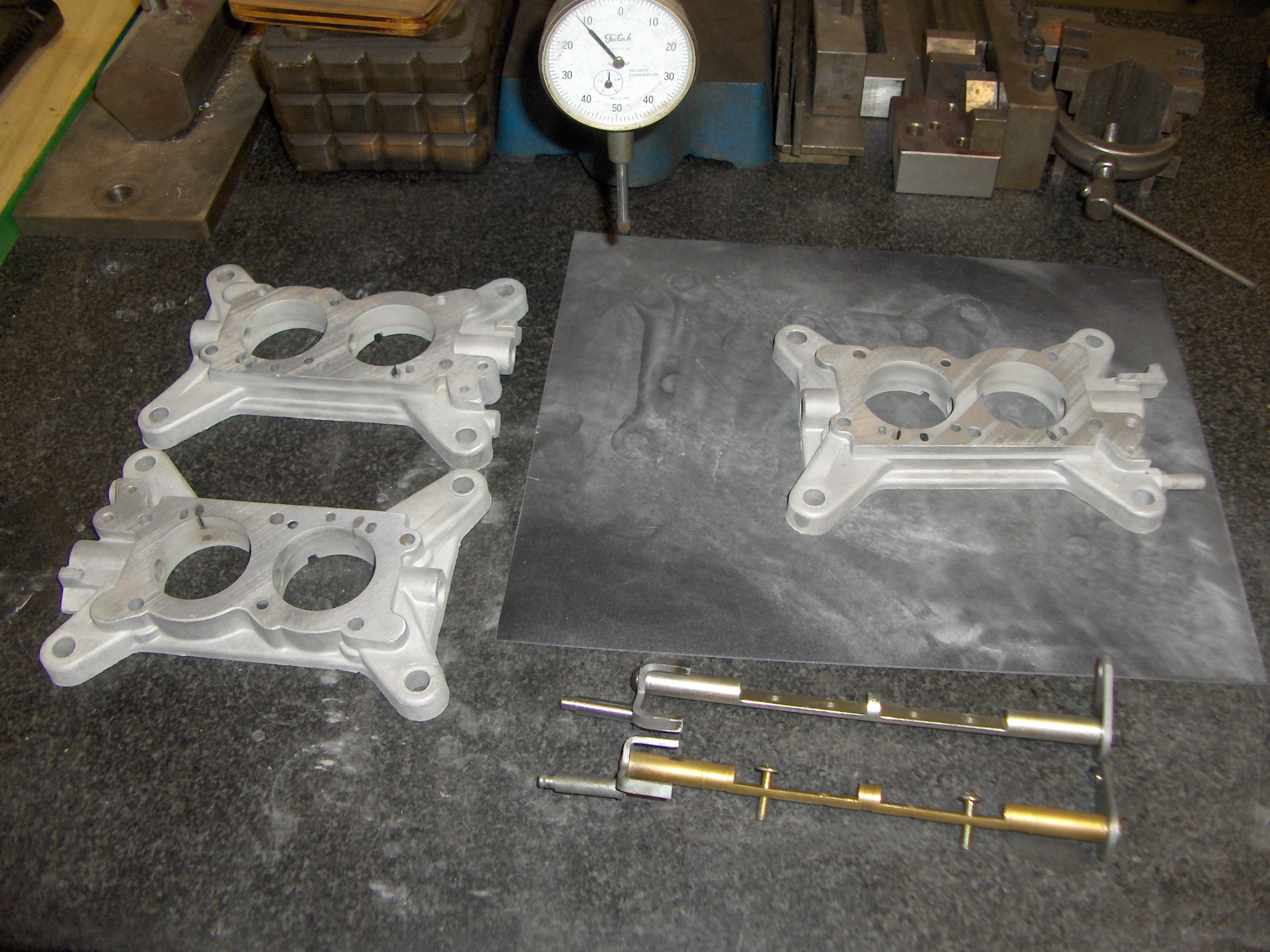

The bottom shaft is original equipment the top shaft is a new unit with modified ends to mimic the original. You can use this when using new Holley Carburetors. You can also use the new shaft as mentioned, if you would like to use bronze bushings in the old plates.

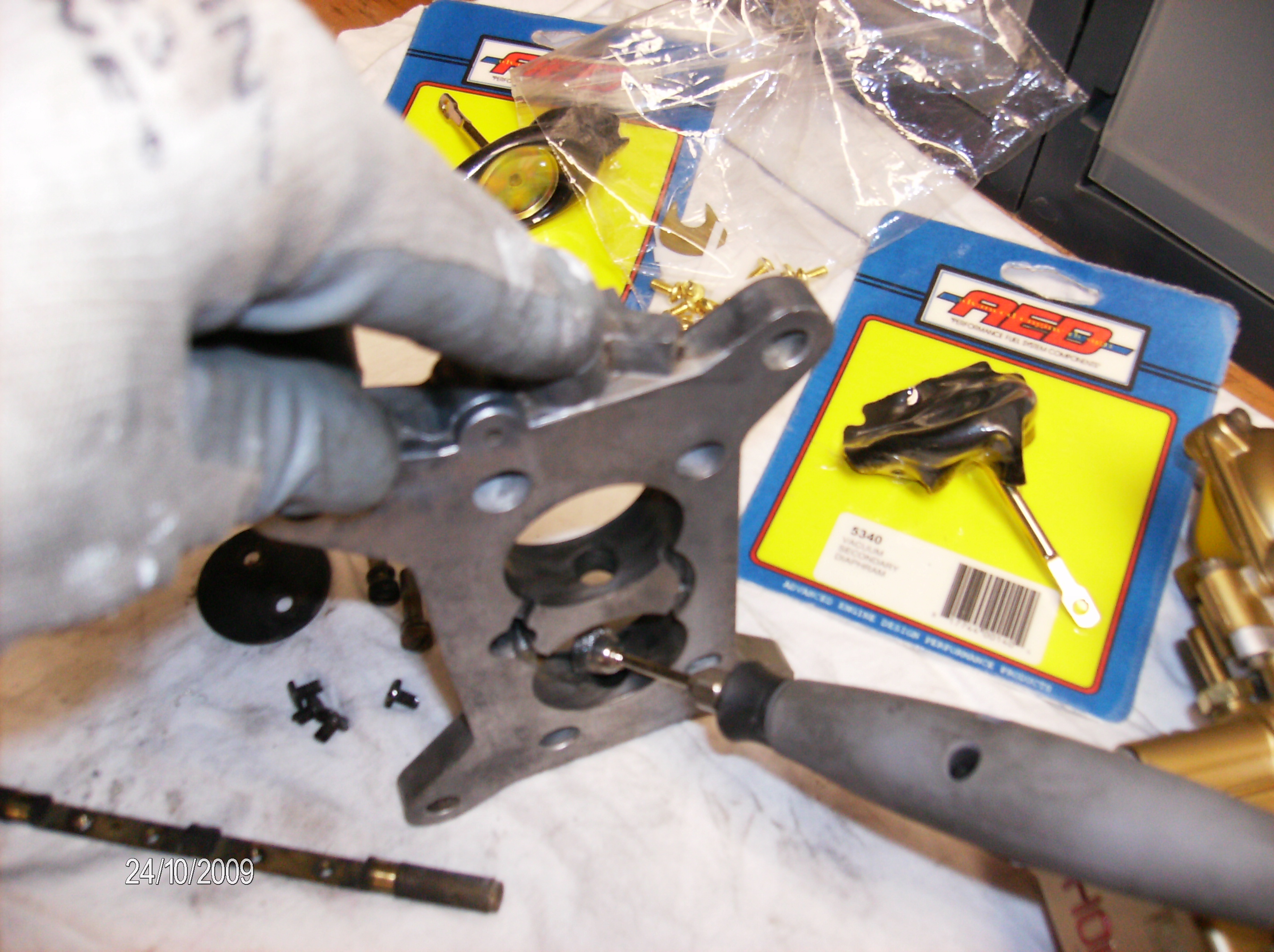

With my Dremel tool I brushed the bores clean. Carefully clean up the shafts and plates.
On a good flat surface using a piece of 320 paper carefully sand down the surface.

Side to side …back to front.. Then, on a diagonal back and forth…
Check for flatness by rocking corner to corner or check with a dial gauge.
You will get a perfectly flat surface (both sides) like this.
We can begin re-assembly with new bushings screws and throttle plates.
In this illustration I positioned the bushings on the shaft. You can hold them in position with a little masking tape.
Note: You can use nylon but I prefer Teflon. You can buy small sheets and cut it yourself.
If you prefer There are lots on-line suppliers as well. The thickness is about .022 You can buy the thickness you need.
You can source Nylon or Teflon material at http://WWW.McMasterCarr.Com
Use Loc-tite when installing the screws.

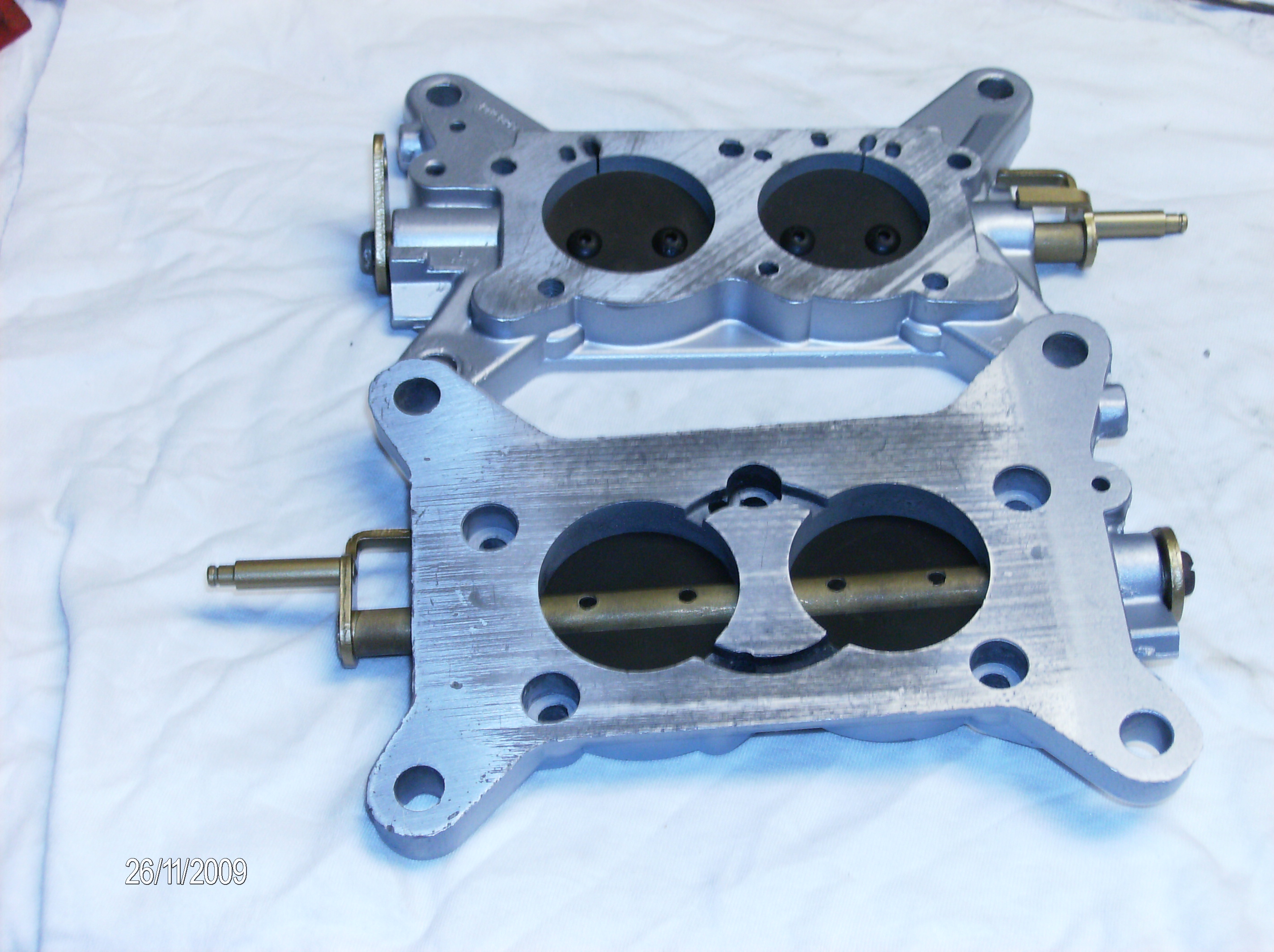

Here are the finished Secondary Throttle plate assemblies. They will move as smooth as silk.
2002 Lincoln Blackwood Black on Black on Black on Black ...did I say Black...
2007 Mercury Gran Marquis
1959 Lincoln Continental Coupe (blk on blk)
430 Tri-Power Super Marauder
1959 Lincoln Continental Convertible (wht on wht)

User avatar
Shelby#18
Master Sergeant
Master Sergeant
Posts: 353
Joined: Fri 17. Apr 2009, 14:15
Gender: male
Music instruments you're playing: none

Re: DIY010A Super Marauder Restoration,Throttle plate Rebuil

Post by Shelby#18 » Thu 23. Sep 2010, 16:46

Great post! This is the kind of stuff I like, when someone takes the time to document the procedure. Thank you!

User avatar
Theo
Administrator
Administrator
Posts: 1179
Joined: Sun 21. Dec 2008, 14:10
Gender: male
Location: Berlin / Potsdam in Germany
Contact:

Re: DIY010A Super Marauder Restoration,Throttle plate Rebuil

Post by Theo » Fri 24. Sep 2010, 07:28

Shelby#18 wrote:Great post! This is the kind of stuff I like, when someone takes the time to document the procedure. Thank you!
definitely second that. This section is worth for a min. 30 posts member unlock section option.
Best regards
Theo
